Ferrule Printing Machine

Global Hardware and Tools LLC

Ferrule Printing Machine

Dhs. 4,800.00

BEE100/PC Electronic lettering machine are for marking PVC ferrule Tube, tape and heat shrinkable tube. 300DPI resolution printing produces clear, sharp and durable lettering.

Electronic lettering machine facilitate cable ID marking jobs for switchgear and control marker. BEE100/PC can be linked with PC through USB interface,Data can be sent from the PC to the printer,allowing you to create large quantities of data with ease,in addition to the existing original files, the printer can read CSV-format files, this feature greatly reduces the time required for field work.

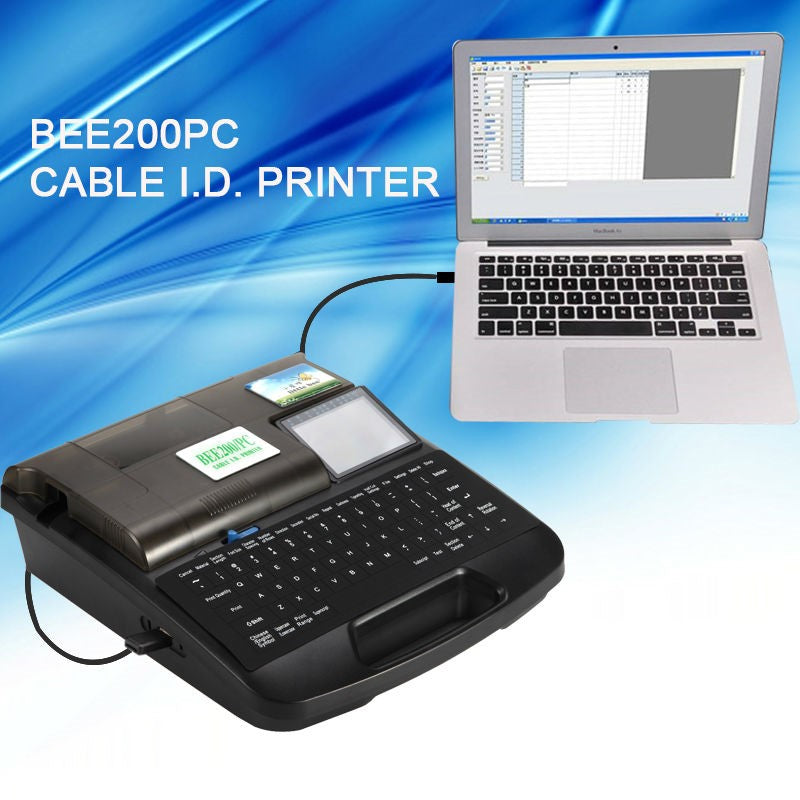

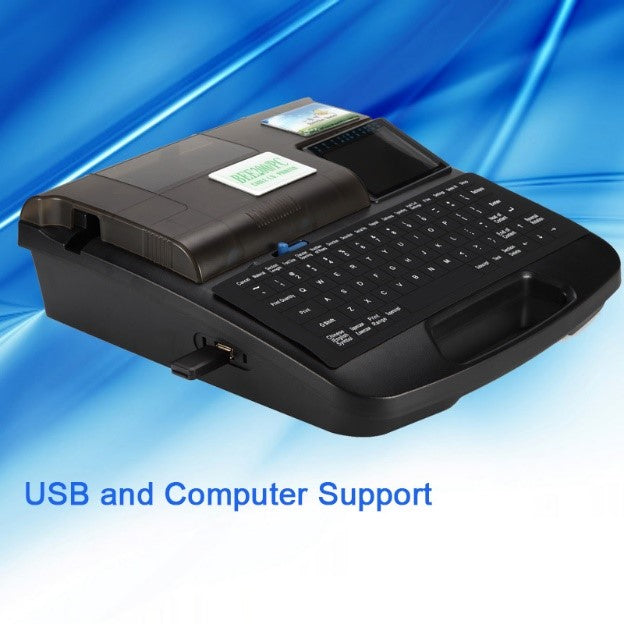

PC INTERFACE

BEE100/PC features USB port for direct connection with Windows personal computer(BEE100 does not features USB port) Equipped with application software "LITTLE BEE PC Editor" Data prepared on PC can be down loaded to the Lettering Machine for printing tubes and tapes

OUTPUT RATE

Printing speed 25mm per second. With half-cut operation able to print 35 pcs of 20mm length tube per minute. 40 pcs of 20mm length tube per minute. Maximum number of characters input 1000 characters. 99 blocks High efficiency batch printing

SPECIFICATION

PC Interface BEE10/PC by USB cable
Marking Material PVC Tube, Tape, Shrinkable Tube

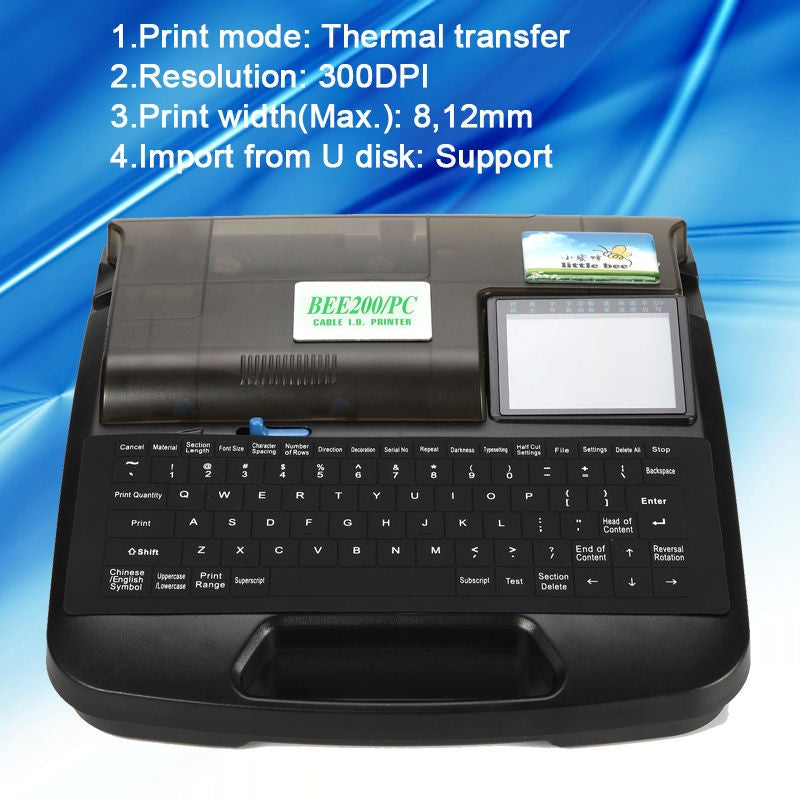

Printing Method Thermal Transfer
Resolution 300dpi

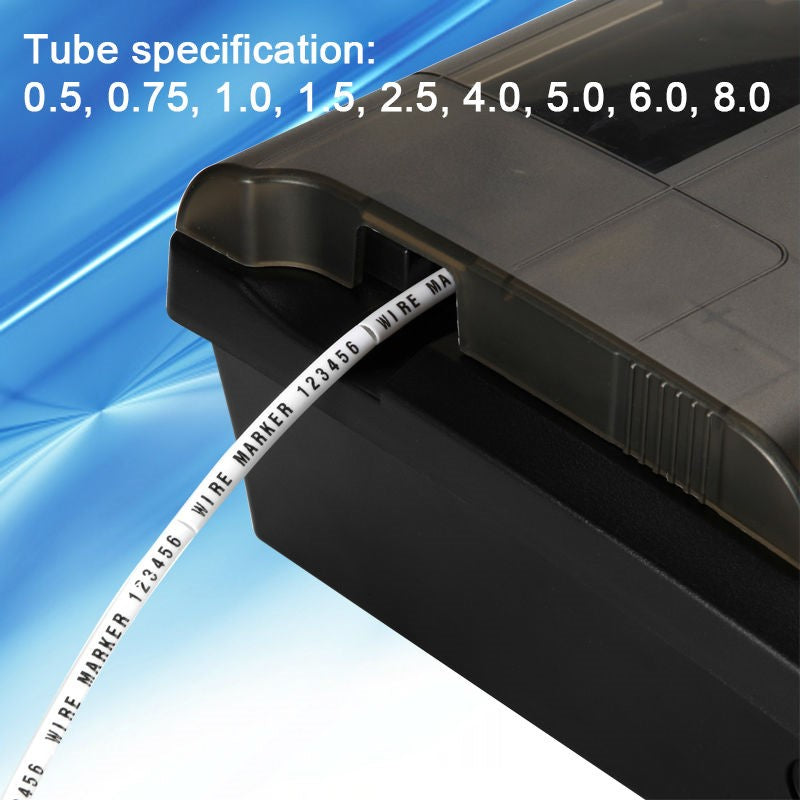

Applicable tube size 2mm to 6 mm PVC Tube
Printing Rate 25mm / Sec
PVC tube Printing speed 35 pcs / m (20mm length)
Tape printing speed 40 pcs / m (20mm length)

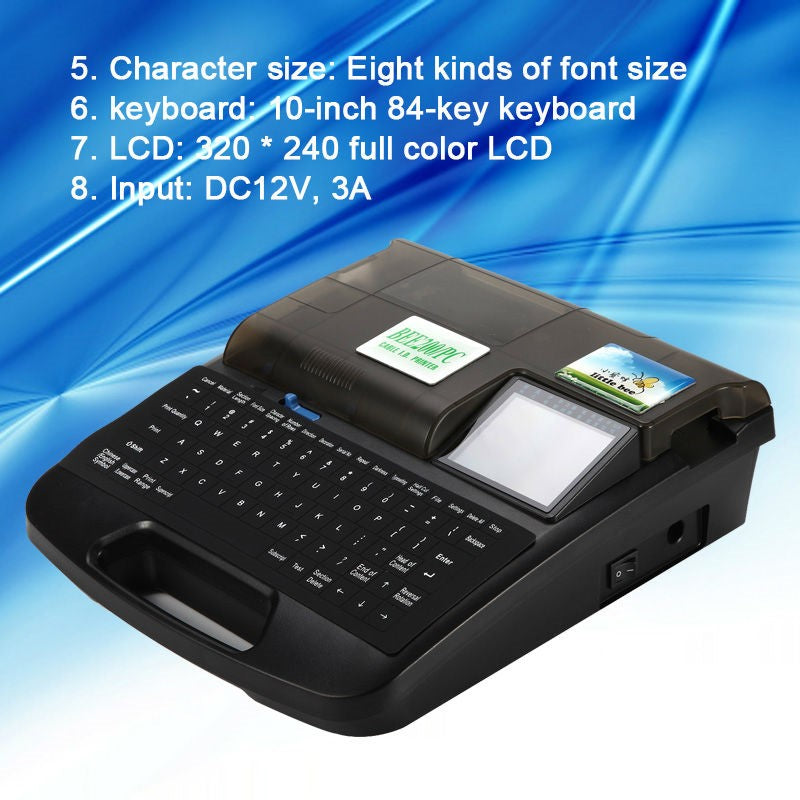

LCD Display Back-lit , 2 lines display
Input languages English , simplify Chinese
Font sizes 6 sizes
Internal Memory 1 GB, 128 files
Tube Cutting Auto : half cut, manual : full cut
Ink Ribbon Exclusive Biovin cassettes : Black & white
Power Supply DC12V, 3.5A
Dimensions 290 (W) x 270 (L) X 100 (H) mm
Weight 2 Kg
Environment temp 15°C ~ 35°C



Resolution

300 dpi high resolution printing produce clear, sharp and durable lettering

Build-in Storage

1GB Large build-in storage memory. Store up to 128 files

Adjustable Cutting Depth

Adjustable cutting Depth enhance the life spend of half cutter unit

Thermal Head

Special coating enhance the life spend of thermal head

Languages

English & Chinese languages switching by a single button.

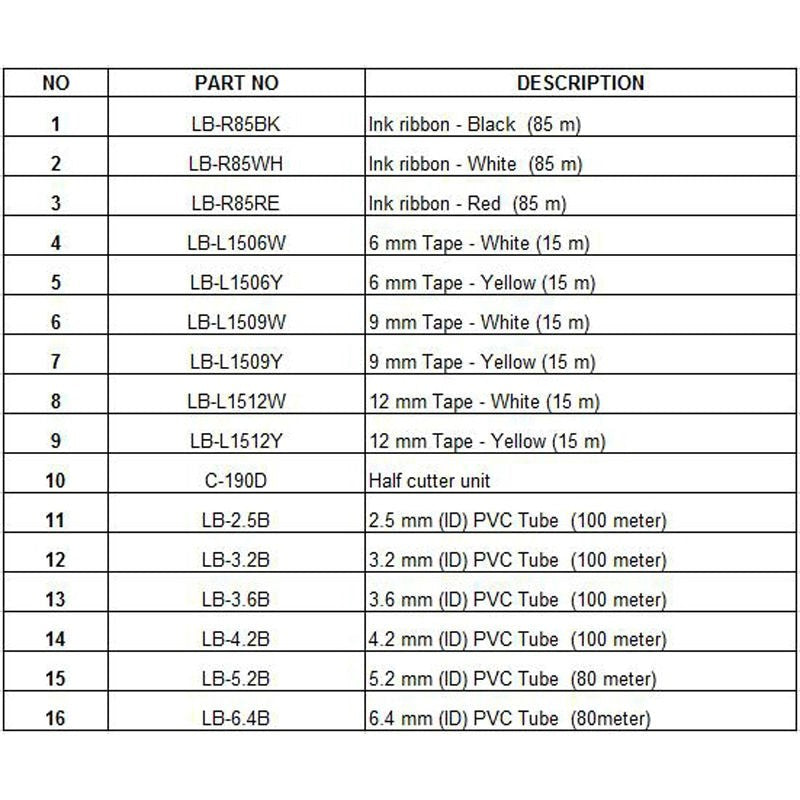

Consumable for this printer:



NO

PART NO

DESCRIPTION

1

LB-R80B

Ink ribbon - Black  (80 m)

2

LB-R80W

Ink ribbon - White  (80 m)

3

LB-06W

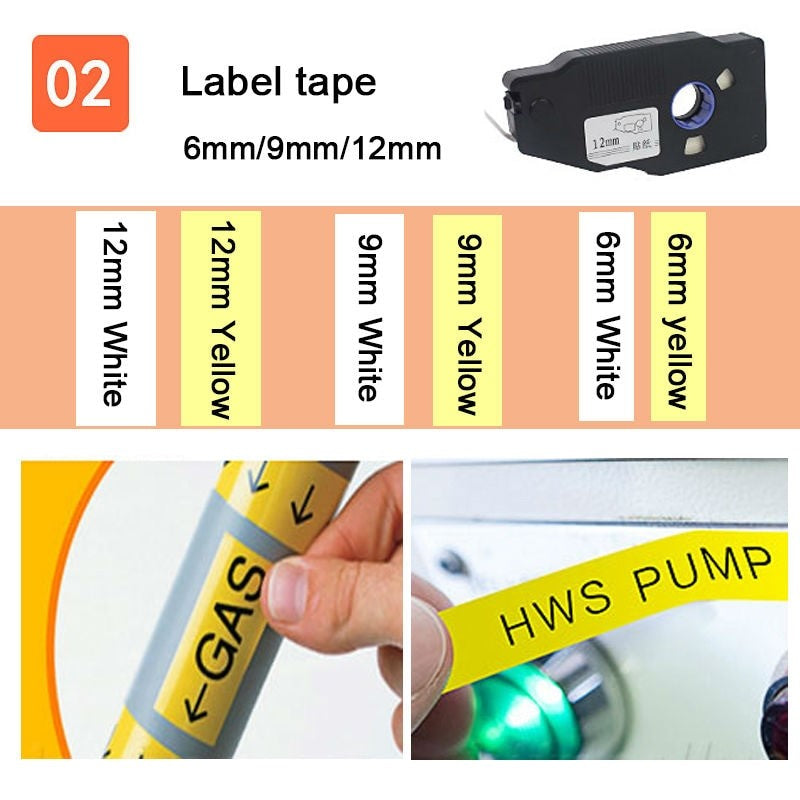

6 mm Tape - White (8 m)

4

LB-06A

6 mm Tape - Silver  (8 m)

5

LB-06Y

6 mm Tape - Yellow (8 m)

6

LB-09W

9 mm Tape - White  (8 m)

7

LB-09A

9 mm Tape - Silver   (8 m)

8

LB-09Y

9 mm Tape - Yellow  (8 m)

9

LB-12W

12 mm Tape - White (8 m)

10

LB-12A

12 mm Tape - Silver  (8 m)

11

LB-12Y

12 mm Tape - Yellow (8 m)

12

KS-01

Half cutter unit

13

LB-2.5B

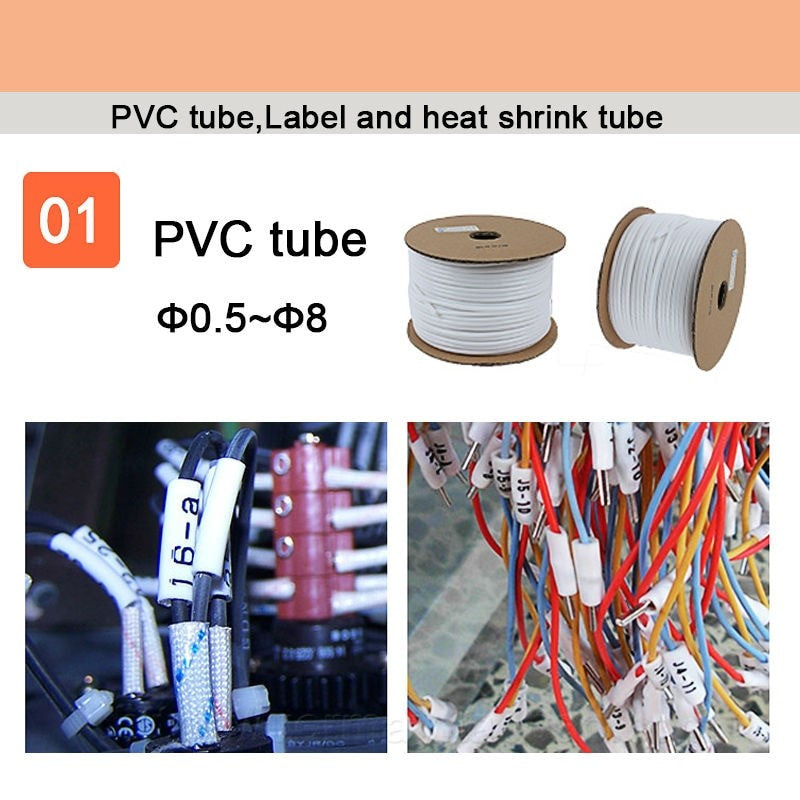

2.5 mm (ID) PVC Tube  (100 meter)

14

LB-3.2B

3.2 mm (ID) PVC Tube  (100 meter)

15

LB-3.6B

3.6 mm (ID) PVC Tube  (100 meter)

16

LB-4.2B

4.2 mm (ID) PVC Tube  (100 meter)

17

LB-5.2B

5.2 mm (ID) PVC Tube  (100 meter)

18

LB-6.4B

6.4 mm (ID) PVC Tube  (100 meter)
