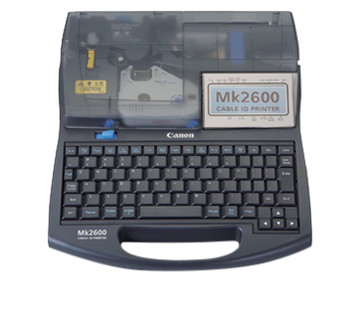

Canon MK2600 Ferrule printer

The Mk2600 can print high speed precise characters, up to 40mm per second and 300 dpi, onto a wide range of media including tubes, label/wrap-around tapes, and strips, and also offers thermal printing durability. With a bright, large backlit LCD display, user-friendly keyboard, and automatic full and half-cutting, it offers smooth and easy printing from start to finish. It can also connect to a PC through its USB interface and has the ability to read CSV-format files, which can help reduce the time required for field work. The Mk2600 offers customers an affordable running cost by utilizing generic media for heat tube labels.

Printer

Printing Method

Thermal Transfer Method

Resolution

300 dpi

Printing Speed

Tube:
High speed mode: 40 mm/sec
Medium speed mode: 25 mm/sec
Low speed mode: 18.5 mm/sec

Label:
High speed mode: 40 mm/sec
Medium/Low speed mode: 25 mm/sec

Processing Speed

High speed mode: about 42 pieces/min
Medium speed mode: about 35 pieces/min
Low speed mode: about 30 pieces/min

Conditions for printing and cutting - tube cut length: 20 mm, number of characters: 5 (two-byte characters of 3 mm wide), half cutting: on, cut strength: standard

Ink Ribbon

Ribbon IC cassette (black, white)
Length - black: 100 m, white: 85 m

Size of Characters

1.3 mm (for two-byte alphanumeric characters only), 2 mm (Kanji characters not supported for this size), 3 mm, 6 mm (both one-byte and two-byte characters supported)

Types of Characters

JIS First-Level Kanji, JIS Second-Level Kanji, symbols

Data Entering

Notebook type keyboard alphanumeric input, area code input, symbol input

Vocabulary of Dictionary

About 80,000 words

Display

LCD graphic display (160 x 64 dots)

Number of Characters Displayed

Input data: 10 characters × 2 lines (two-byte characters), or 20 characters x 2 lines (one-byte characters) However, three lines can be edited.

Memory Capacity

Storage for character data: about 5,000 characters^*2
Storage for files: about 60,000 characters^*2
Number of folders: 10

Cutting Method

Automatic half cut, automatic full cut

Power

AC adapter (100 VAC - 240 VAC, 50/60 Hz)

Interface

USB 2.0 Full-Speed (PC connection kit required)

Operating Environment

Temperature: 15°C to 32.5°C, Humidity: 10% to 85%

Maximum Power Consumption

17.3 W

Storage Environment

Temperature: 5°C to 35°C, Humidity: 10% to 90%

Main Body Dimensions

Width: 250 mm x Depth: 300 mm x Height: 85 mm

Main Body Weight

2 kg

Media Types

Tube:
Commercially available PVC round tube^*3 (Inner diameter: 2.5 mm to 6.5 mm, thickness: 0.5 mm)

Label Tape
Cassette (white, yellow) - width: 6 mm, 9 mm, 12 mm, length: 30 m
Adjustable range of cut length: 2 mm to 150 mm^*4

Wrap Around Tape:
Cassette (white in the areas to be printed, transparent in other areas)
Winding length: 8 m, length: 33 mm, width: 6 mm to 150 mm (adjustable by the cut length setting)

Plate:
0.5 mm with optional Plate attachment
Thickness: 0.5 mm, Width: 8 mm, 8.5 mm, 9.5 mm, 10 mm
