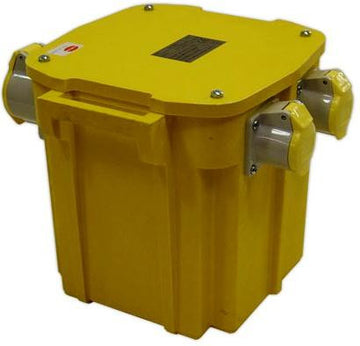

5.0KVA Portable Tool Rated Transformer
Moulded two part GRP case in yellow.
5.0KVA intermittent duty cycle (5 mins on 15mins off), 2.5KVA continuous rated isolating transformer.
Input 230 volts 1-PH @ 50/60Hz.
Output 110 volts C.T.E @ 45 amps.
Insulation class B.
1.5mtr 1.5mm² sq 3 core arctic blue (Supplied With 16A 230V Blue Plug, can be changed to 13A UK Plug, please e-mail after purchase to request)
2 x 110 volt 16 amp + 1 x 110 volt 32 amp 2P+E IP44 rated to IEC60309
Manually resetable 18 amp thermal MCB on input.
Transformer is potted in silica sand and sealed with resin.
H: 271mm, L: 315mm, W: 345mm aprx
