Pipe Cutting and Beveling Machine

Air / Electrical / Gas Operated Pipe Cutting And Beveling Machine

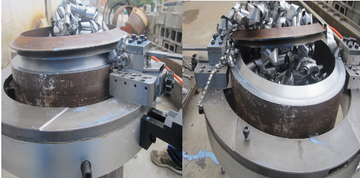

This series of machine are ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counter bore and flange facing operations, as well as weld end preparation on open ended pipe.

Features:

• Cold Cutting and Beveling improves safety
• Cutting and Beveling simultaneous
• Split Frame: easy mounted on pipeline
• Tools feed automatically
• Fast, Precision, On-site Beveling
• Minimal Axial and Radial clearance
• Light weight and compact design
• Easy set-up & Operation
• Electric or Pneumatic or Hydraulic driven also available as options
• Machining heavy-wall pipe from 3/4” up to 56”

Applications:

• Oil & Gas
• Power Plant
• Chemical Plant
• Nuclear Power
• Process Plant & Fabrication
• Ship Building & Repair

• Model	Working Range (OD)		d (mm)	h (mm)	L (mm)
  	Inch	mm
  89	3/4”-3”	25-89	94	137	160
  159	2”-5”	50-159	170	215	178
  168	2”-6”	50-168	185	225	178
  230	3”-8”	80-230	236	253	178
  275	5”-10”	125-275	283	277	178
  305	6”-10”	150-305	316	290	178
  325	6”-12”	168-325	334	303	178
  377	8”-14”	219-377	386	330	178
  426	10”-16”	273-426	438	357	180
  457	12”-18”	300-457	469	373	180
  508	14”-20”	355-508	518	399	190
  560	16”-22”	400-560	570	424	190
  610	18”-24”	457-610	618	448	190
  660	20”-26”	508-660	670	474	190
  715	22”-28”	550-715	719	519	190
  762	24”-30”	600-762	770	539	190
  830	26”-32”	660-813	830	567	192
  914	30”-36”	762-914	924	613	212
  1066	36”-42”	914-1066	1077	741	212
  1230	42”-48”	1066-1230	1248	777	212
  1430	50”-56”	1230-1430	1438	877	220

Largest stockist of cold cutting and beveling machine in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
