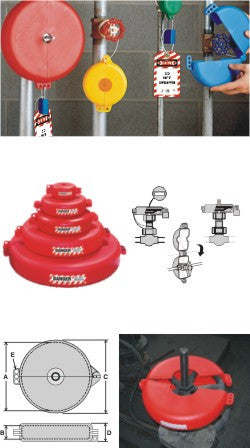

GATE VALVE LOCKOUT

Gate Valve Lockout : Virtually indestructible valve covers.

Once locked, they rotate freely around the hand wheel & prevent the valve wheel from being turned.

The strong polyurethane plastics make them resistant to cracking and abrasion.

They are resistant to extreme weather and temperature conditions.

Available in 5 sizes ( Red colour ) Other colours are available on request - minimum quantity applicable.

3 padlock holes are available in each gate valve lockout device.

Different sizes cover most commonly used valve diameters.

Withstands temperatures from - 20°F to 200°F

Unique knockout center accommodates OS & Y or “rising stem” valves.

Suitable for hasps and padlocks.

  Dimensions

Size        Inside dia (A)     Inside depth.(B)               Outside dia. (C) Outside height (D)

25 - 63.5 mm      70 mm  32 mm  76 mm  38 mm

63.5 - 127 mm    130 mm                34 mm  140 mm                44 mm

127 - 165 mm     170 mm                41 mm  177 mm                50 mm

165 - 254 mm     257 mm                50 mm  267 mm                63 mm

254 - 355 mm     355 mm                63 mm  368 mm                74 mm

MODEL PRODUCT DESCRIPTION

ES - 02 - GVL       Fits on handle wheel dia from 25 to 63.5 mm ( 1" - 2½" inch)

ES - 04 - GVL       Fits on handle wheel dia from 63.5 to 127 mm ( 2½" - 5" inch)

ES - 06 - GVL       Fits on handle wheel dia from 127 to 165 mm ( 5" - 6½" inch)

ES - 08 - GVL       Fits on handle wheel dia from 165 to 254 mm ( 6½" - 10" inch)

ES - 10 - GVL       Fits on handle wheel dia from 254 to 355 mm ( 10" - 13" inch)

Largest stockist in Abu Dhabi, Dubai, UAE, Iraq, Saudi Arabia, Kuwait, Oman.
