Pipe and Cable Locator
As the underground network of pipes and cables becomes ever more complex and congested, operators need a more sophisticated pipe and cable locator to precisely identify and trace in amongst a range of utilities. The C.Scope MXL2 Locator is the answer.

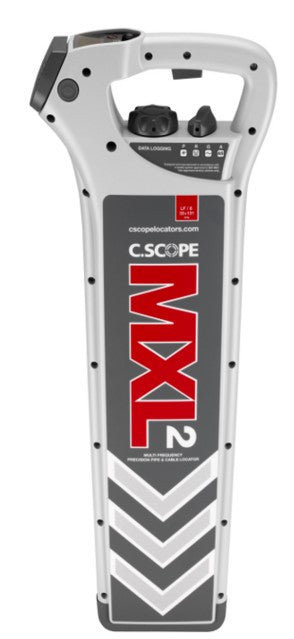

The MXL2 is a precision Pipe and Cable Locator that will accurately locate, identify and trace specific underground pipes and cables. The use of additional signal detection frequencies and innovative new features hugely improves the resolution and accuracy of identification and tracing.
The C.Scope MXL2 Locator should be used alongside the high power multi frequency MXT2 Transmitter.
Product name
MXL2 Locator
Part No.
MXL2 Locator - ZXMXL2
MXL2 Locator with Data Logging - ZXMXL2-DL
Product Dimensions
720mm x 280mm x 65mm
Weight
2.6kg incl. batteries.
2.4kg excl. batteries.
Batteries
Internal 8 x AA (LR6) cells alkaline batteries typically giving up to 40 hours intermittent use at 20°C.
Compatible with NiMH rechargeable batteries.
Temperature Range
-20°C to +50°C
IP Rating
IP65
Approvals
CE
|
Locator Features
|
MXL2
|
MXL2-DL
|
|---|---|---|
|
Power Mode
|
• | • |
|
Radio Mode
|
• | • |
|
Transmitter Mode
|
• | • |
|
- 33+131kHz
|
• | • |
|
- 8kHz
|
• | • |
|
- 512 / 640Hz
|
• | • |
|
ALL SCAN Mode
|
• | • |
|
Depth
|
• | • |
|
Signal Current Measurement
|
• | • |
|
Automatic Noise Rejection
|
• | • |
|
Dynamic Swing Sensor
|
• | • |
|
Automatic Daily Self Test (ADST)*
|
• | • |
|
Data Logging
|
-
|
• |
|
Data Transfer via USB
|
-
|
• |
|
Display (LCD)
|
• | • |
|
Three Year Warranty**
|
• | • |
|
Batteries***
|
8 x AA (LR6)
|
8 x AA (LR6)
|
|
IP65
|
• | • |
| * ADST. | C.Scope's new MXL2 performs an Automatic Daily Self Test (ADST). If attention is required the ADST will alert the user to please contact an authorised C.Scope Service centre for assistance. |
| *** Batteries. | The MXL2 uses 8 x AA LR6 Alkaline or NiMhCad or Rechargeable batteries sealed in a secure fitted battery compartment. The battery pack will typically provide approximately 40 hours of use. The battery compartment also houses a spare battery holder. |
|
Mode/feature
|
Frequency
|
Sensitivity @ 1m Depth
|
Detection Depth
|
|---|---|---|---|
|
Power
|
50 - 400Hz
|
5mA
|
Up to 3m
|
|
Radio
|
10kHz - 30kHz
|
25µA |
Up to 2m
|
|
Transmitter
|
33kHz + 131kHz
|
5µA |
Up to 5m
|
|
8kHz
|
100µA
|
Up to 5m
|
|
|
512Hz / 640Hz
|
500µA
|
Up to 5m
|
|
|
All Scan
|
50Hz - 33kHz
|
100µA
|
Up to 3m
|
|
Sonde
|
33kHz
|
-
|
Up to 7m
|
|
8kHz
|
-
|
Up to 7m
|
|
|
512Hz / 640 Hz
|
-
|
Up to 7m
|
